Attributes:
| Model No. | BBSL3008 | Color | Black, Sliver | |

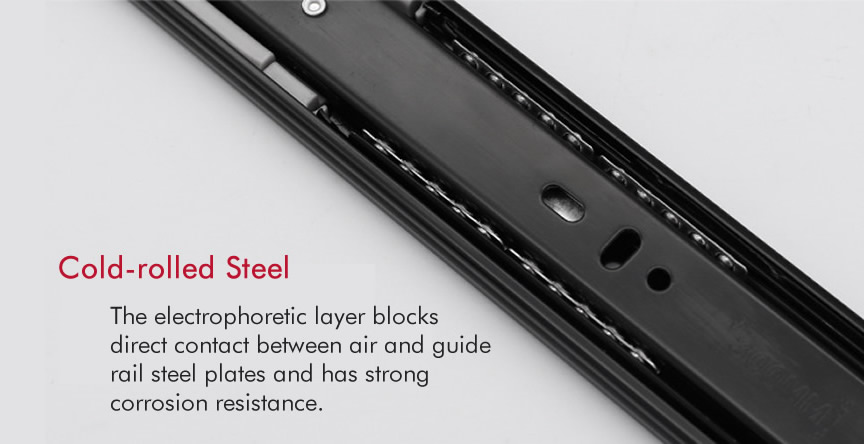

| Brand | Maxplus | Surface Finish | Painting, zinc-plated | |
| Type | Ball-bearing drawer slides | MOQ. | 500 sets | |
| Folded | Yes | Sample | Available | |
| Warranty | 10 Years | Packing | 20 sets/Carton | |
| Thickness | 0.8 mm | Slide Length | 10"-16" (250-400 mm) | |
| Material | Metal | OEM/ODM | Acceptable | |
| Installation | Side mount | Loading Capacity | 35kg/18" (450mm) |
Packing & Delivery:
| Packing & Gross Weight | carton (20 sets): 270x130x140mm |
Quantity (sets) | <120 sets | >120 sets | ||
| Lead Time | 25 days | to be negotiated | ||||
Sample & Customization:
| Available Sample | Customization | |||||
| Maximum Order: | 2 sets | Customized Logo | Customized Packing | |||
| Sample Price | Regular Price | Min. Order: | 5,000 sets | Min. Order | 5,000 sets | |
Technical Info:

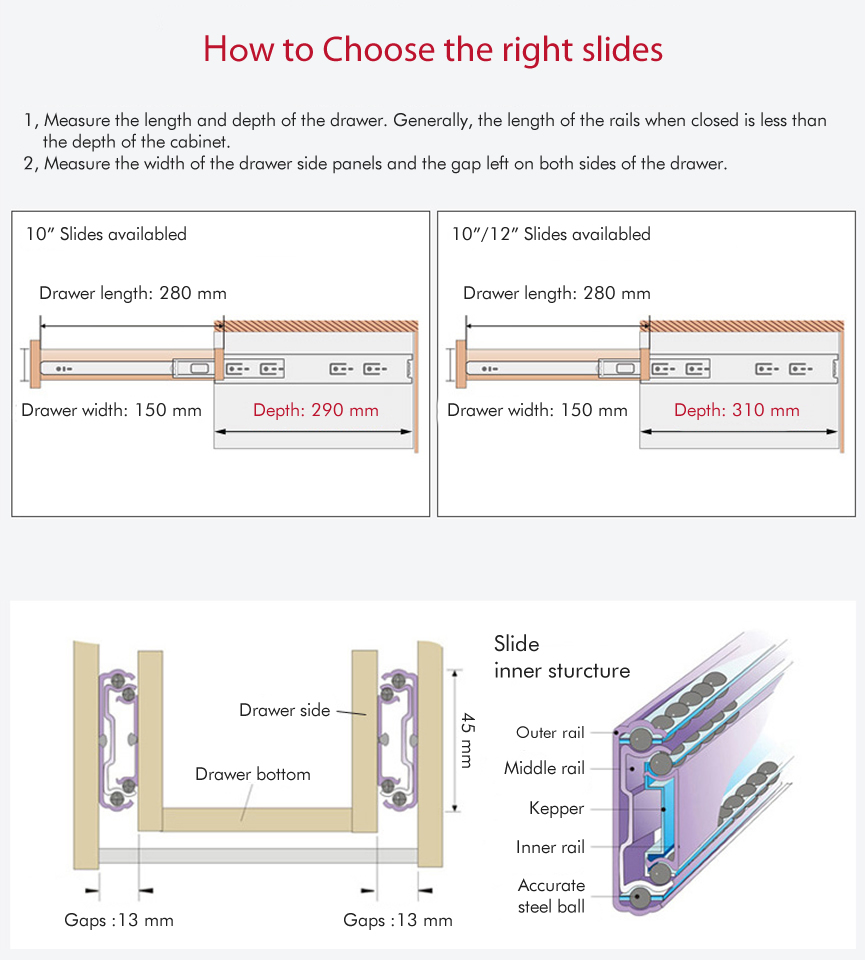

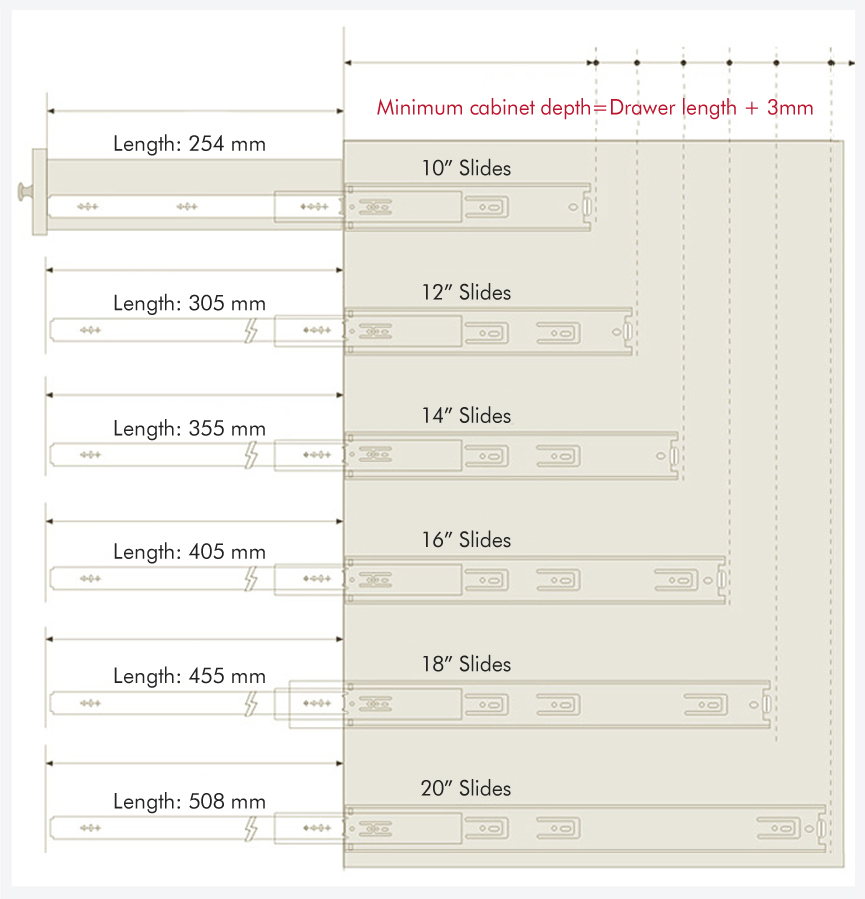

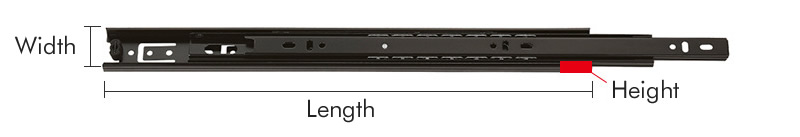

| Article No. | Width | Length | Height | Thickness |
| BBSL300810 | 30 mm | 10"--250 mm | 12 mm | 0.8 mm |
| BBSL300812 | 30 mm | 12"--300 mm | 12 mm | 0.8 mm |
| BBSL300814 | 30 mm | 14"--350 mm | 12 mm | 0.8 mm |
| BBSL300816 | 30 mm | 16"--400 mm | 12 mm | 0.8 mm |
| CUSTOMIZED AVAILABLE | ||||
| Drawer Glide | 500,000 sets |
Advantages and Benefits:

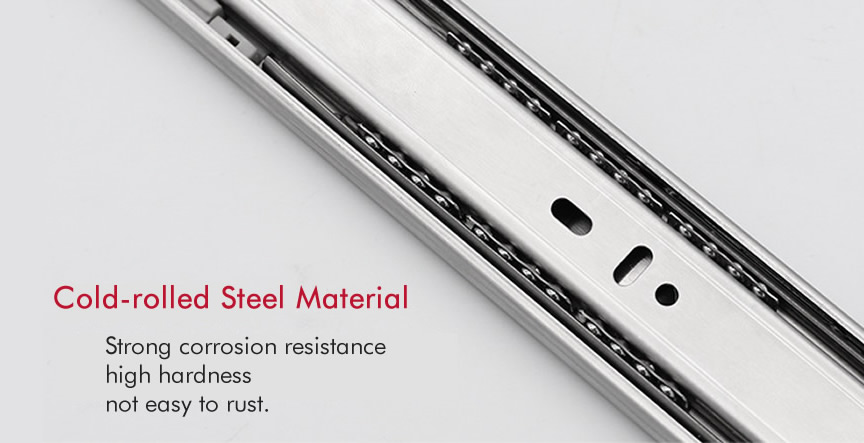

【HIGH QUALITY】The drawer slides are made of high-quality steel, which is durable and sturdy. Moreover, the soft-close drawer slides will not rust or bend. The size of the side-mount drawer slides are standard and suitable. In order for the package to reach you intact, all drawer slide glides are well packaged.

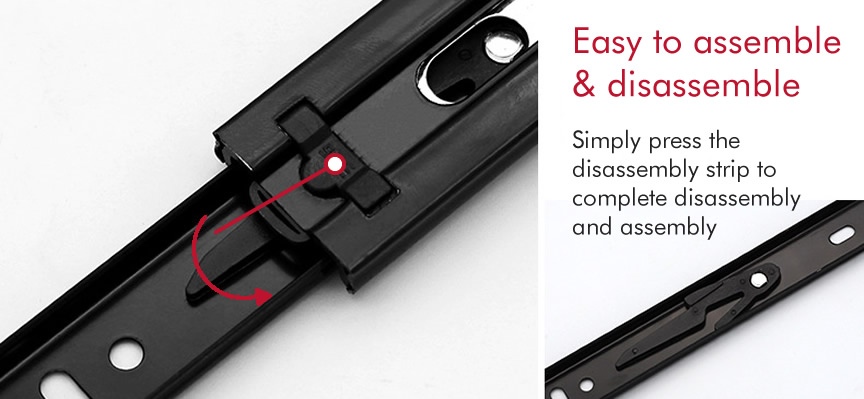

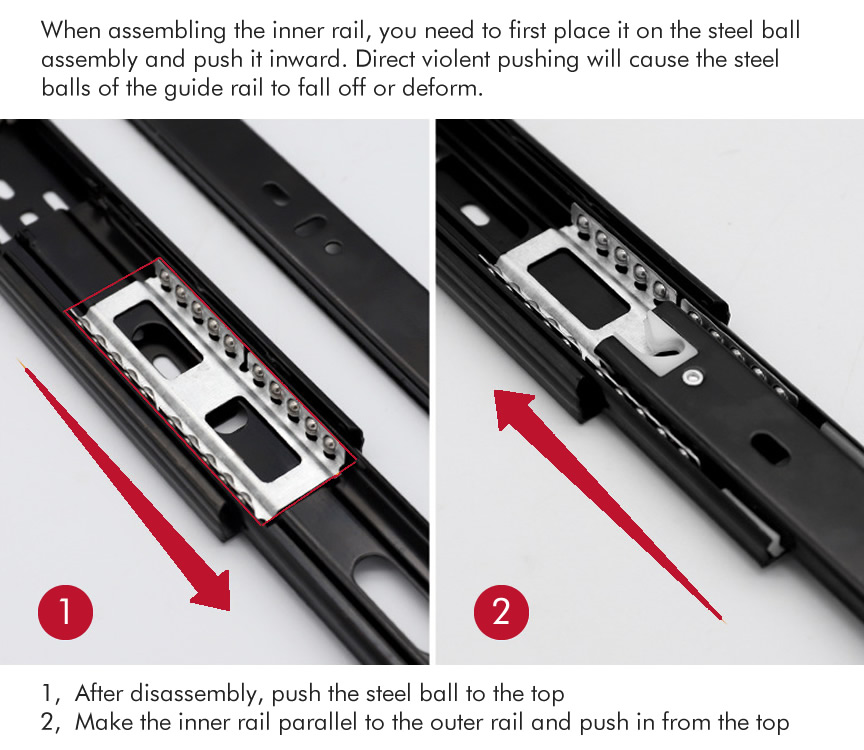

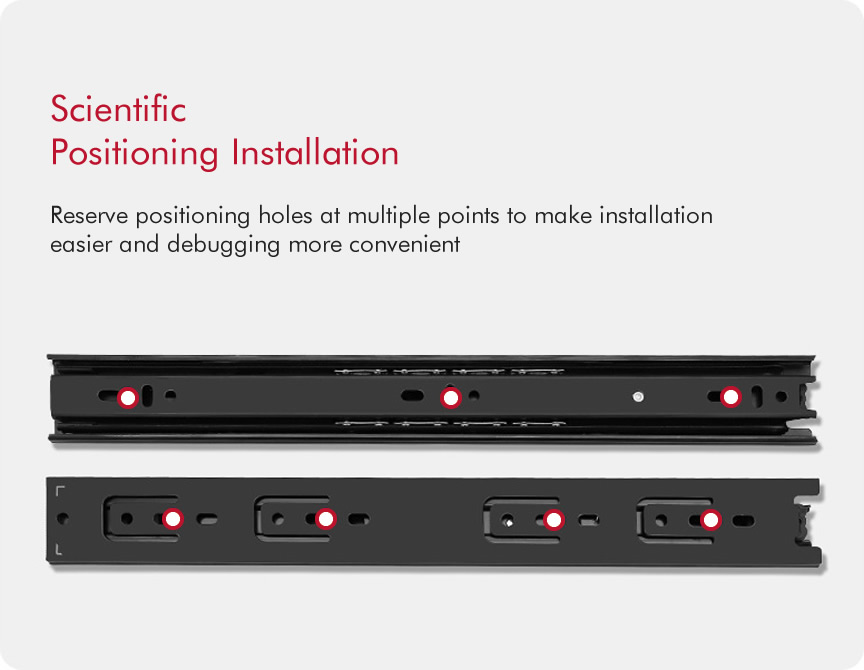

【EASY TO INSTALL】These side-mount drawer slides are very easy to install, use and operate smoothly. You can open or close the drawer slide easily. The package includes a detailed instruction manual about the soft-close drawer slides, which can help you quickly learn how to install the center-mount drawer slides.
